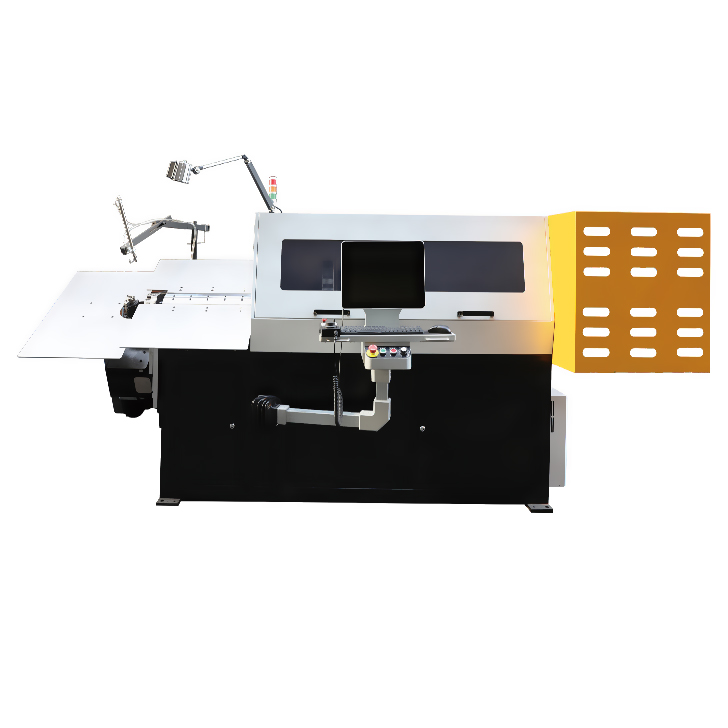

CJ-38 3D CNC wire bending machine is an essential tool for crafting detailed 2D and 3D shapes with precision, ideal for intricate projects. It functions efficiently, delivering precise results for any complex 3D shape, akin to its 2D equivalent.
Features
1.Automatic feeding rack must be over 2000mm from the main unit.
2.Remote operable system with efficiency display and auto-stop feature.
3.Axis control with 0.1 unit programming and 0.01 unit control accuracy.
4.Real-time debugging with hand-wheel and jog functions.
5.User-friendly programming with support for direct axis input.
6.Adjustable axis parameters with backup and recovery.
Parameter
Wire Diameter | 3.0mm-8.0mm |
Voltage | 380V (Customizable) |
Machine Operating Voltage | 220V |
Inverter Capacitance | 30 KVA |
Machine Weight | 3100KG |
Machine Size | 3M*1.7M*1.4M |
Feeding Wheels | 9 Pairs |
Feeding Power | 4.5kW |
Maximum Feeding Speed | 40m/min |
Feeding Accuracy | ±0.1mm |
Platform Lift Height | [-170,50] mm |
Bending Die Lift Height | [-100,20] mm |
Outer Die Lift Height | [-55,20] mm |
Servo Motor Quantity | 8 |
Outer Die Bending Power | 2.0kW |
Platform Lift Power | 1.0kW |
Left-Right Movement Power | 2.0kW |
Inner Die Bending Power | 2.0kW |
Die Lift Power | 2.0kW |
Wire Rotating Power | 2.7kW |
Wire Rotating Angle Range | ∞ |
Cutting Power | 2.0kW |
Total Power | 18.2kW |
Storable Item Program | 10000 programs |
