CNC Rotary Tube Cutting Machine

CNC Rotary Tube Cutting Machine

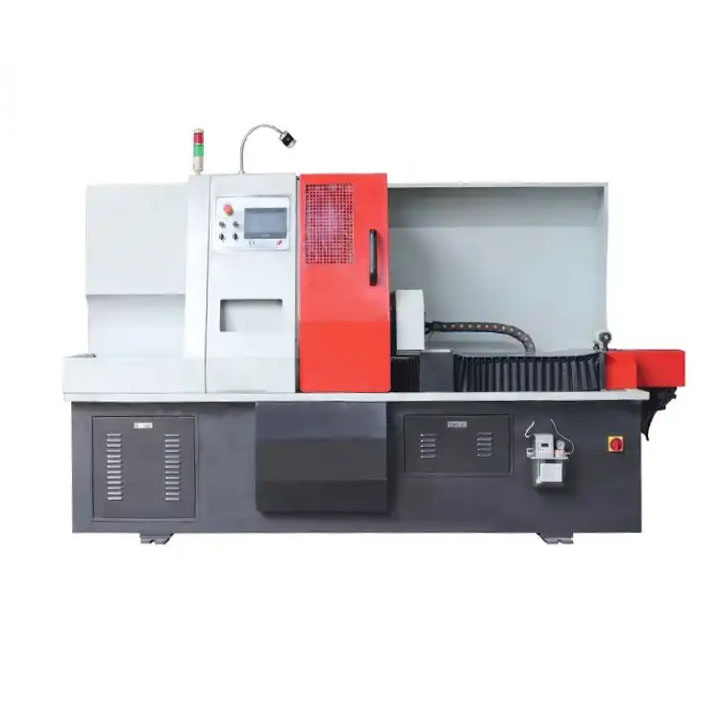

CJ-220 CNC Rotary Pipe Cutter

The CJ-220 CNC Rotary Tube Cutting Machine: Revolutionizing Medium Diameter and Thick-Walled Tube Cutting. This innovative machine offers a unique cutting method, where the cutting tools rotate around the tubes, ensuring precise and clean cuts. Ideal for round pipe tubes, it delivers efficient and accurate results every time.

request a quote

Parameters

Model

CJ-220NC

Diameter Capacity

133-219mm

Pipe Thickness Capacity

3-10mm

Cutting Length

20-650mm (Single feed, can feed several times)

Spindle Speed Control

Stepless speed regulation

Blade Motor

7.5 kw

Cut Feed

Servo motor controlled, adjudicate

Cutter Tools

4-5mm NC cutting tools

Cutter Quantity

4pcs

Cutting Speed

159x4 steel pipe as example, 15-20s to cut off.

168x10 steel pipe as example, 45s to cut off.

Clamping Way

Self centering hydraulic clamping

Loading Way

Manual loading

Loading Table Capacity

Length 6m 159mm diameter as axample, 12pcs

Feeding Way

Servo motor and rack controlled

Feeding Speed

≤250mm/second

Feeding Precision

±0.15mm

Discharging Way

Transfering
