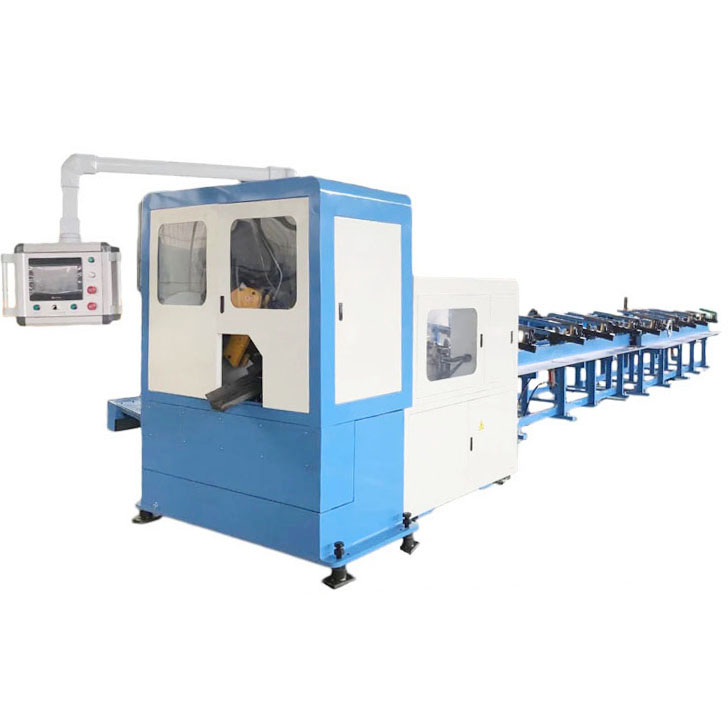

The CJ-80, a high-speed circular saw, is designed for precision and efficiency. It features a short-tail design for optimal material usage and waste reduction. Its unique 3-axis system, including an innovative axis, reduces tail length. An optional scrap-sucking device for pipe cutting extends blade life and maintains efficiency, enhancing productivity. The CJ-80 is ideal for high-performance, durable cutting with minimal downtime.
Parameters
Model/Specification | CJ-80 | |
Cutting Capacity | Round | ≤80 mm |
Square | ≤50x50mm | |
rectangle | ≤80x30mm | |
TCT Saw Blade | Blade Size | Φ 360*2.6T |
Pin hole size | 4*Φ16*PCD80*Φ50 mm | |
Rotating speed | 20-170 rpm | |
Length accuracy | +/-0.1mm | |
Chip clean | Steel Brush | |
Motor Power | Spindle motor | 11 kw/4P |
Hydraulic motor | 2.2 kw | |
Cutting servo motor | 2.0 kw | |
Feeding servo motor | 1.0 kw | |
Chip conveyor motor | 0.2 kw | |
Coolant pump motor | 0.19 kw | |
Hydraulic | Hydraulic pressure | 70kg/m² (7mpa) |
Fuel tank volume | 90L | |
Pneumatic | Air pressure | 4-8 kg/m² (0.4-0.6mpa) |
Feeding & Clamping | Feeding length | 5～800 mm |
Tailing Length | 20～20+α(cutting length) | |
Feeding drive mode | AC servo motor+ ball screw+ linear guide | |
Clamping mode | Horizontal clamping & Vertical clamping | |
Electricity | Voltage & Hertz | 3Phase, 380V, 60Hz or customized |
Size & Weight | Size | 6500*2000*1700mm |
Weight | 4500kg |
