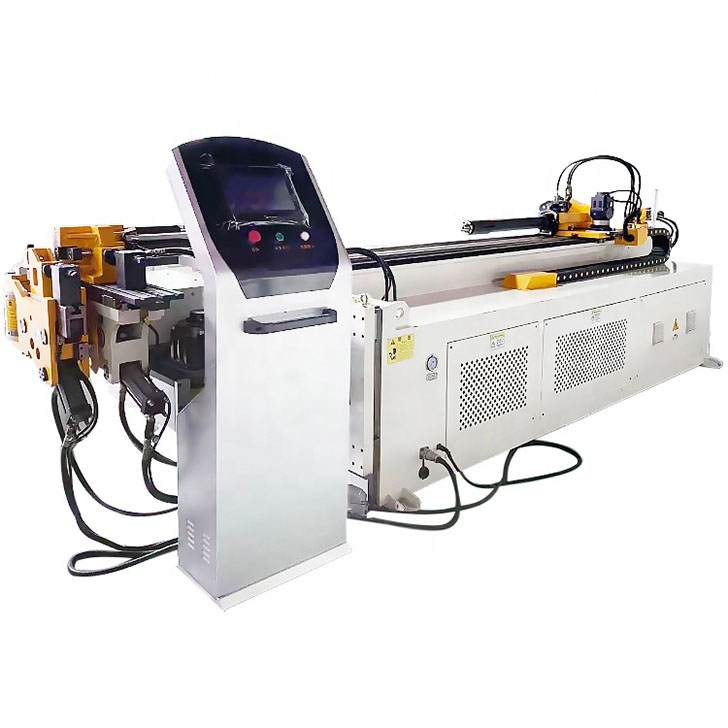

Tube Bending Machine

The 89CNC-2A-1S is a 3D fully automatic single-layer, two-axis pipe bending machine. This CNC pipe bender utilizes a bending mechanism powered by servo motors and reducers. The clamping, gripping, supporting, guide mould auxiliary pushing, and core pulling are all driven by hydraulic cylinders. The feeding (Y-axis) and rotation (B-axis) are driven by servo motors, and bending (C-axis) is featured as well. This machine boasts powerful pipe bending capabilities and high precision in servo control. All programming and input are conducted directly on an interactive computer touch screen, with all information and instructions available for automatic selection in either Chinese or English. This makes the operation extremely convenient, fast, and accurate.

Features
1.Advanced Tube Bending Technology: Combines rich bending process experience with sophisticated mold design and manufacturing. Includes an automatic oiling system to enhance bending quality and extend mandrel life.

2.High-Performance Electrical Control System: Features robust and stable Japanese Mitsubishi servo components, including drives, motors, and a large-capacity CPU capable of managing up to 400 file edits.

3.Versatile and Safe Operation: Offers jog, single, and automatic operational modes with integrated circuit block structure for reliable hydraulics. Ensures safety with limit switches and an emergency stop button.

5.Flexible Bending Capabilities: Equipped with a mandrel mechanism for both mandrel and mandrel-less bending, adaptable to various profiles with interchangeable molds.
