Round Tube Mirror Polishing Machine, China Factory Price
Tube processing machine

Round Tube Mirror Polishing Machine

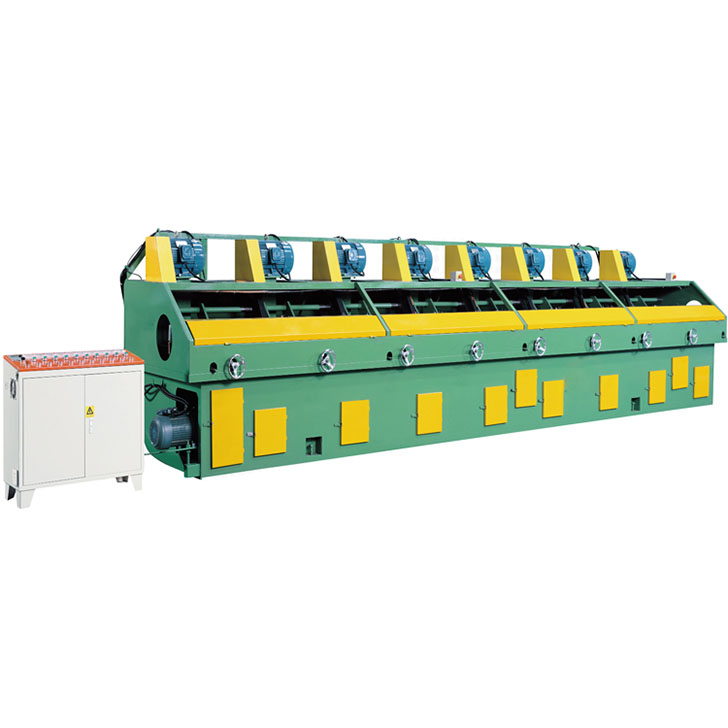

CJ-8 Round Tube Mirror Polisher

CJ-8 stainless steel round tube mirror polishing machine is suitable for polishing the outer surface of various metal sections with round cross-sections. The entire machine is composed of four parts: the polishing mainframe, feeding device, discharging device, and control system. Based on the range of tube polishing, the round tube polishing machine can be divided into a basic model and a high-configuration model. Depending on the number of polishing heads, they are further categorized into 6-head, 8-head, 10-head, and 12-head polishing machines. After being polished by this machine, the surface roughness can reach 500# to 700#.

Produced through processes including feeding, polishing (using flap wheels, sisal wheels, cloth wheels, and airway buffing wheels) with the addition of polishing wax, and unloading. Due to the mature polishing technology of stainless steel polishing machines, they are widely applied in the decorative industry.
Key Features
1.Time-saving and simple process,
2.High quality with a bright finish,
3.Minimal pollution.

Parameters

Machine Model

CJ -8

Application

Steel pipe surface grinding & polishing

(mirror finish, matt finish, hairline finish)

Polishing head

8

Pipe diameter

15-63mm

Pipe length

500-7000mm

Grinding head motor

8*7.5kw

Main motor power

3kw variable frequency

Total power

63kw (power consumption 70-80%)

Voltage

Per request

Motor brand

JIANG CHENG

Electrical components

CHINT

Polishing shaft length

300mm

Polishing shaft Dia.

36mm material 40Cr , Blackening treatment

Revolving speed

2300r/min

Polishing speed

1-45m/min

Max OD of polishing wheel

150-350mm

Polishing wheel thickness

300mm Maximum

Machine size

7200*1300*1600mm

Loading & off loading

Manual loading & common automatic off loading

Machine direction

 Per request
