Square Pipe Mirror Polishing Machine, China Factory Price
Tube processing machine

Square Pipe Mirror Polishing Machine

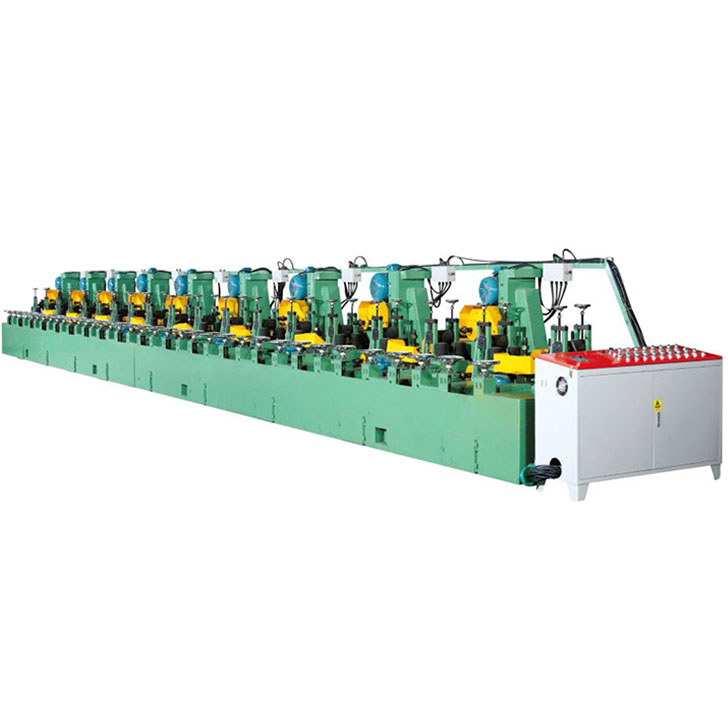

CJ-32 Mirror Tube Polishers

CJ-32 stainless steel square tube polishing machine is suitable for polishing the external surfaces of various metals with square and rectangular cross-sections. The entire machine consists of four parts: the polishing mainframe, feeding device, discharging device, and control system. Based on the range of tube polishing and configuration, the square tube polishing machine is divided into a basic model and a high-configuration model. Depending on the number of polishing heads, it is further classified into 28-head,32-head and to 36-head square polishing machines. After processing with this machine, the surface roughness can reach 500# to 700#.
Produced through processes including feeding, polishing (using flap wheels, sisal wheels, cloth wheels, and airway buffing wheels) with the addition of polishing wax, and unloading. Due to the mature polishing technology of stainless steel polishing machines, they are widely applied in the decorative industry.
Key Features
1.Time-saving and simple process,
2.High quality with a bright finish,
3. Minimal pollution.

Parameters

Machine Model

CJ -32

Application

Steel pipe surface grinding & polishing

(mirror finish, matt finish, hairline finish)

Polishing head

32

Pipe diameter

10*10-100*100mm

Pipe length

1500-7000mm

Grinding head motor

32*5.5kw

Main motor power

5.5kw variable frequency

Total power

181.5KW (power consumption 70-80%)

Voltage

Per request

Motor brand

JIANG CHENG

Electrical components

CHINT

Polishing shaft length

300mm

Polishing shaft Dia.

36mm material 40Cr , Blackening treatment

Revolving speed

2800r/min

Polishing speed

1-45m/min

Max OD of polishing wheel

150-350mm

Polishing wheel thickness

300mm Maximum

Machine size

13200*1650*1450mm

Loading & off loading

Manual loading & common automatic off loading
