Heavy Duty Plate Beveling Machine


Heavy Duty Plate Beveling Machine
Heavy Duty Plate Beveling Machine

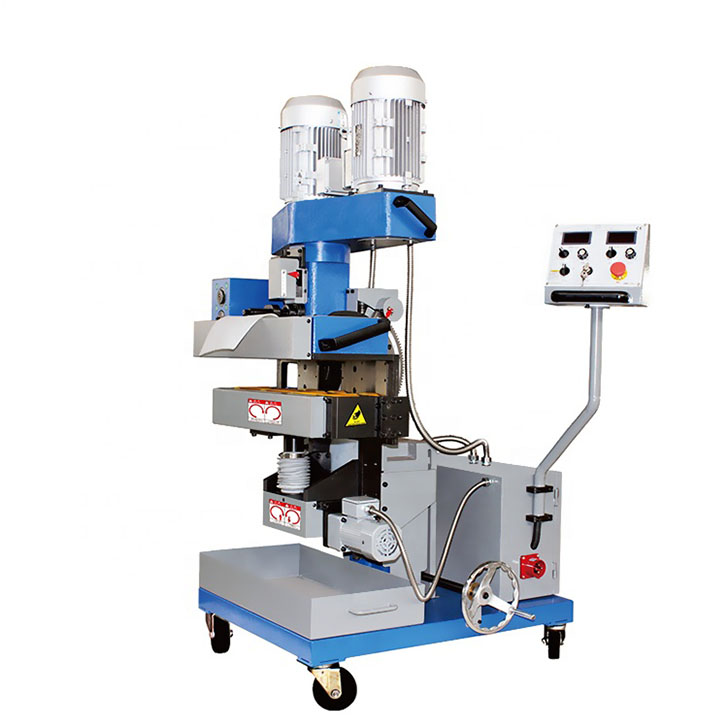

CJ-100L Edge Beveling Machine

CJ-100L steel plate edge milling machine is primarily designed for bevel cutting and clad removal/strip on steel plates made of materials such as mild steel, stainless steel, aluminum steel, alloy titanium, Hardox, duplex, and more. The CJ-100L is a heavy-duty plate beveling machine equipped with two milling heads, capable of handling plate thicknesses ranging from 6 to 100mm. It offers adjustable bevel angles ranging from 0 to 90 degrees. The CJ-100L can achieve a 30mm bevel per cut, making it highly efficient. With just 3-4 cuts, it can achieve a bevel width of up to 100mm, significantly improving efficiency and resulting in time and cost savings

request a quote
ModelsCJ-60SCJ-60LCJ-80ACJ-80RCJ-100LCJ-100KGCM-R3TDGCM-R3AR
Power SuppyAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZ
Total Power4520W4520W4920W4920W6520W6480W1900W& 0.5-0.8 Mpa1900+400W
Spindle Speed1050r/min1050r/min500~1050r/min500-1050mm/min500-1050mm/min500~1050r/min2800r/min2800r/min
Feed Speed0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min0~4000mm/min0~4000mm/min
Clamp Thickness6~60mm6~60mm6~80mm6~80mm6~100mm6~100mm8~60mm8~60mm
Clamp Width>80mm>80mm>80mm>80mm>100mm≥100mm≥100mm≥100mm
Clamp Length>300mm>300mm>300mm>300mm>300mm≥400mm≥300mm≥300mm
Bevel Angel0~60 degree0~90 degree0~60 degree0~±60 degree0~90 degreeTop 0~90 ° and Down 0~-45°//
Singel Bevel width0-20mm0-20mm0-20mm0-20mm15-30mm0-20mm3mm3mm
Bevel Width0-45mm0-60mm0-70mm0-70mm0-100mmTop 0~60mm and Down 0~45mmC2/C3/R2/R3R2/R3
Cutter DiameterDia 63mmDia 63mmDia 80mmDia 80mmDia 100mm2 * Dia 63mm2 * Dia 60mm2 * Dia 60mm
Inserts QTY6 pcs6 pcs6 pcs6 pcs7 pcs/9pcs2 *6 pcs2 *3 pcs2 *3 pcs
Worktable Height700-760mm700-760mm700-760mm700-760mm810-870mm810-870m'm800-860mm730-790mm
Suggest Table Height730mm730mm730mm730mm830mm830mm830mm760mm
Worktable Size800*800mm800*800mm800*800mm1200*800mm1200*1200mm800*800mm1200*900mm1000*1000mm
Clamping WayAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto Clamping
Wheel Size4 Inch STD4 Inch STD4 Inch STD4 Inch Heavy duty4 Inch Heavy duty4 Inch Heavy duty/4 Inch STD
Machine Height AdjustHydraulicHydraulicHydraulicHandwheelHandwheelHandwheelHandwheelHandwheel
Machine N.Weight200 kgs225 kgs245 kgs310 kgs420 kgs395 kgs380kg300kg
Machine G Weight255 kgs260 kgs280 kgs380 kgs480 kgs460 kgs430kg380kg
Wooden Case Size800*690*1140mm950*700*1230mm800*690*1140mm1100*630*1340mm950*1180*1430mm950*1180*1430mm1400*1200*1230mm950*700*1230mm
