CNC Chamfering Machine


CNC Chamfering Machine
CNC Chamfering Machine

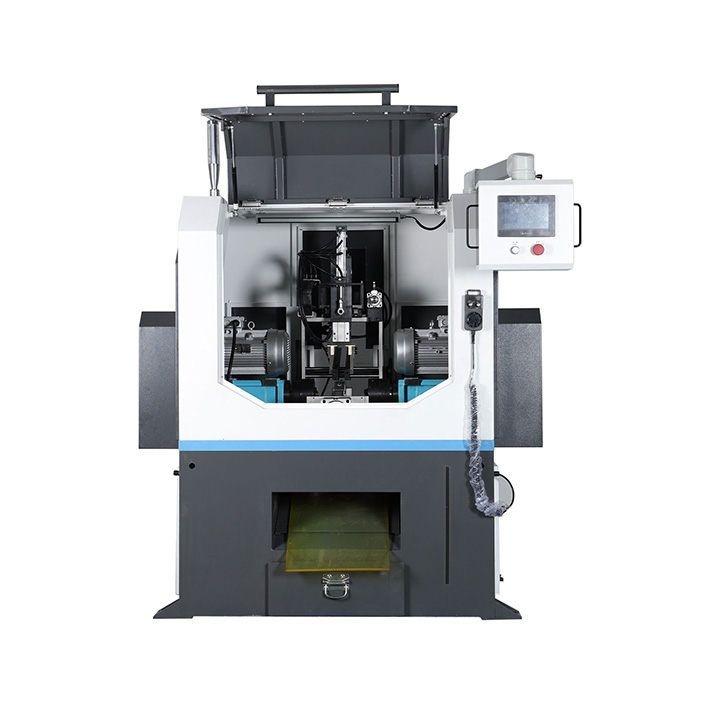

CJ-60CNC Short Tube Chamfering Machine

The CJ-60CNC Chamfering Machine: A High-Precision Solution for Short Length Tube Chamfering

The CJ-60 chamfering machine stands out in the industry for its precision in chamfering tubes with short working lengths ranging from 16 mm to 130 mm and an outer diameter (OD) of 60mm. This machine is especially designed for businesses requiring high-efficiency and accuracy in tube processing.

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Parameters

Model

CJ-60CNC

Type

Hydraulic Drive

Pipe Diameter

10-60mm

Work Length

16-130mm(custom)

Work accuracy

±0.05mm

Verticality

0.1mm

Concentricity

0.05mm

Work Speed

3-6s/pcs

Machine Motor

4.4kw

Work Pressure

MPA 6-8KG

Weight

1000kg

Dimension

150*140*170cm

Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
