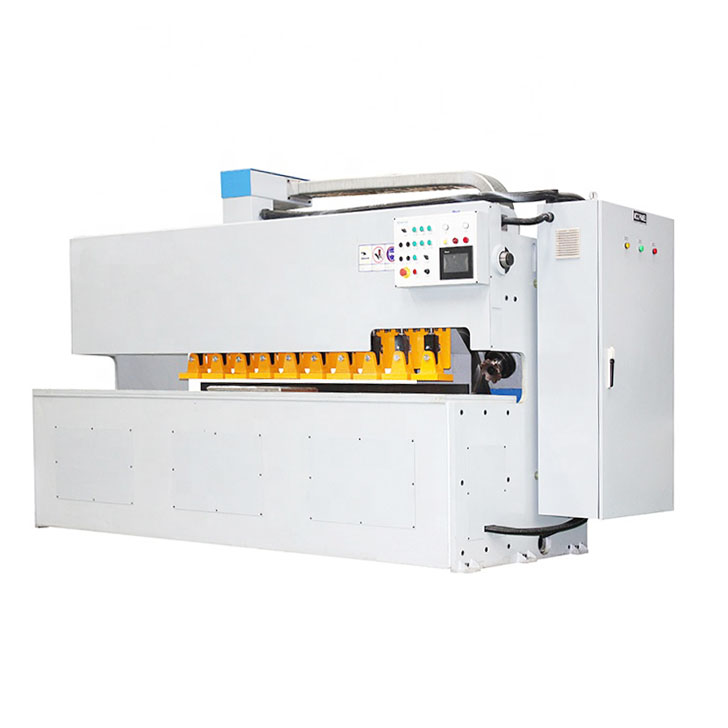

Automatic CNC Plate Edge Milling Machine

CJ-V/X3000 Beveler Machine

CNC 3000 plate edge milling machine employs a high-speed milling working principle to machine grooves into workpieces prior to welding. It is classified into several categories, including automatic walking steel sheet milling machines, large-scale milling machines, and CNC steel sheet milling machines. Other option 2000mm to 10000mm available.

Features:
Bevel Joint
Achieved Bevel Joint: V/Y、L、J/U、I ( K/X on X3000)
Drive Parts
1.Full servo drive + precision planetary deceleration to ensure
precision and efficiency of each shaft;
2.Heavy linear guide, ball screw and precision rack and pinion
applications;
Screen
HMI Touch Screen,Intuitive interface,System Setting and records,Optional Langueage Input,
Easy Operation and Safety,Remote System Upgrade

request a quote

Situation	VS3000	V3000	XS3000	X3000
Max Machine Stroke Length	3000mm	3000mm	3000mm	3000mm
Bevel Thickness	8-80mm	8-80mm	8-80mm	8-80mm
Bevel Angel	Upper Bevel：0-85	Upper Bevel：0-85	Upper Bevel：0-85，Down Bevel：0-60	Upper Bevel：0-85，Down Bevel：0-60
Processing Speed	800-1500mm/min	800-1500mm/min	800-1500mm/min	800-1500mm/min
Head Spindle	5.5kw X 1	5.5kw X 1	5.5kw X 2	5.5kw X 2
Pressure Foot QTY	14	14	14	14
Pressure Foot Move Back and Forth	Manual	Automatic	Manual	Automatic
Table Move Back and Forth	NO	NO	Manual	Automatic
Safety Guard	NO	Protecting Cover+Safety Guard	NO	Protecting Cover+Safety Guard
Chip Removal Device	NO	Spiral chip removal + lifting system	NO	Spiral chip removal + lifting system
Hydraulic Unit	7Mpa	7Mpa	7Mpa	7Mpa
Total Power	about 15kw	about 18kw	about 23kw	about 26kw
Weight	about 6.5T	about 7.5T	about 9.5T	about10.5T
Machine Size(LxWxH）	6000x2100x2750（mm)	6200x2300x2750（mm)	7000x2100x2750（mm)	7300x2300x2750（mm)
