Hex Bolt Chamfering Machine, China Factory Price
Tube processing machine

Hex Bolt Chamfering Machine

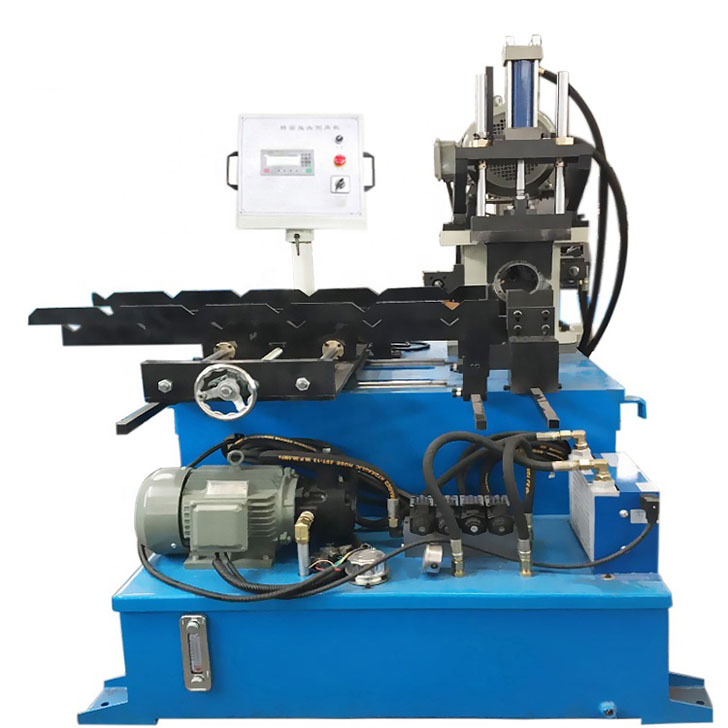

CJ-150 Auto Chamfering Machine

The CJ-150 Automatic Hex Bolt Chamfering Machine: Ideal for Hex Bolt, Tube and Bar Chamfering up to M42"
"Enhance your metalworking capabilities with the CJ-150 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to M42. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects."

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

Paremeters

Model

CJ-150

Type

Hydraulic Drive

Pipe Diameter

M12-M42mm

Work Length

120-800mm(custom)

Work accuracy

±0.1mm

Work Speed

4-10s/pcs

Machine Motor

3.75kw

Work Pressure

MPA 6-8KG

Weight

450KG

Dimension

150*150*165cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
