Chamfering Machine

Chamfering Capacity up to OD 60mm, with 500mm Working Lengths
Our advanced feeding mechanism is engineered with a state-of-the-art tray-type structure, ideal for multi-station operations. This design significantly enhances operational efficiency, especially for large-diameter steel pipes. It stands out in the industry due to its remarkably low noise levels and exceptional stability, ensuring top-notch performance and reliability in demanding environments.

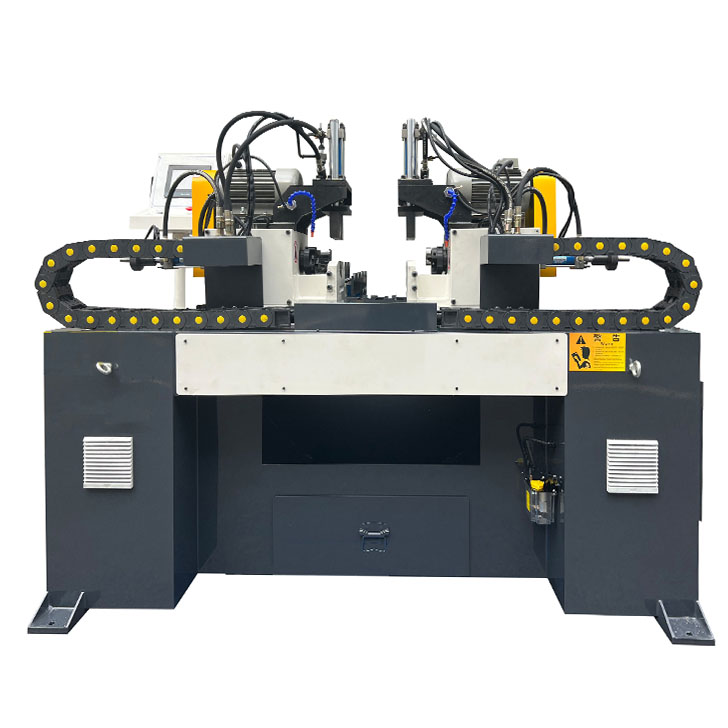

Introducing the custom CJ-60, designed for long lengths and OD 60mm chamfering capabilities. These machines enable simultaneous chamfering at both ends of a tube, accommodating working lengths of up to 500mm. When equipped with the optional BTM (Bundle Loading Magazine), our machines provide a fully automated loading, feeding, and chamfering process. This product line ensures a precise and uniform chamfer on both ends of the tube, including chamfering the inside + outside (I/O) and the face of the material, or creating a rounded chamfer. Additionally, it is suitable for external chamfering of solid bars.

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"
