Heavy Duty Single End Chamfering Machine, China Factory Price
Tube processing machine

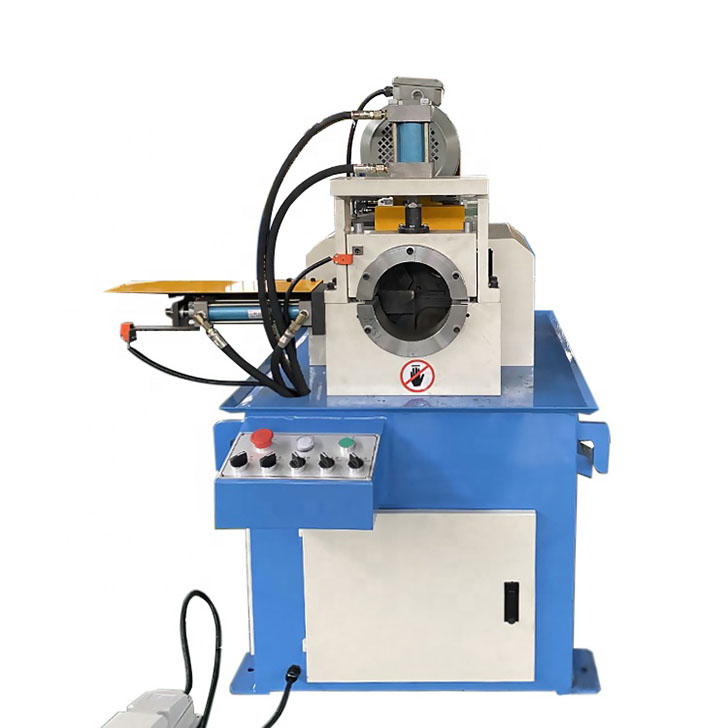

Heavy Duty Single End Chamfering Machine

CJ-300 Chamfering Machine

The CJ-300 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 300mm OD"
"Enhance your metalworking capabilities with the CJ-300 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 300mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects."

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

Paremeters

Model

CJ-300

Type

Hydraulic Drive

Pipe Diameter

50-300mm

Bar Diameter

5-35mm

Work Length

≥80mm

Work accuracy

±0.1mm

Work Speed

4-10s/pcs

Machine Motor

5.5kw

Work Pressure

MPA 6-8KG

Weight

800KG

Dimension

130*150*160cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
