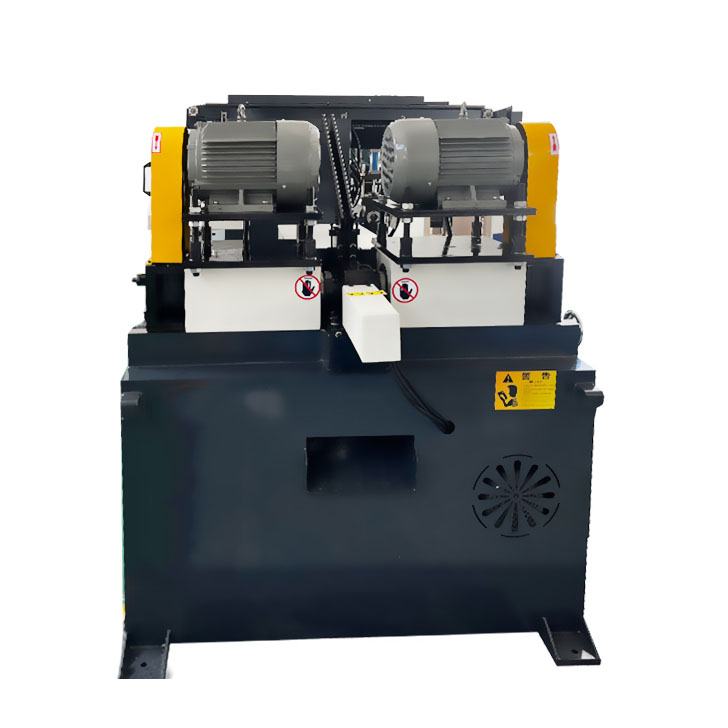

Hydraulic Chamfering Machine


Hydraulic Chamfering Machine
Hydraulic Chamfering Machine

CJ-80 Robot Feed Chamfering Machine

The CJ-80 Automatic Chamfering Machine: A High-Precision Solution for Short Length And Small OD Tube Chamfering

The CJ-80 chamfering machine stands out in the industry for its precision in chamfering tubes with short working lengths ranging from 40 mm to 150 mm and an outer diameter (OD) of 80mm. This machine is especially designed for businesses requiring high-efficiency and accuracy in tube processing.

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Parameters

Model

CJ-80

Type

Hydraulic Drive

Pipe Diameter

30-80mm

Work Length

40-150mm(custom)

Work accuracy

±0.05mm

Work Speed

4-8s/pcs

Machine Motor

6kw

Work Pressure

MPA 6-8KG

Weight

1200kg

Dimension

140*120*150cm

Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc


Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
